Ultrafiltration System—An Efficient Solution for Industrial Wastewater Treatment
Ultrafiltration System—An Efficient Solution for Industrial Wastewater Treatment

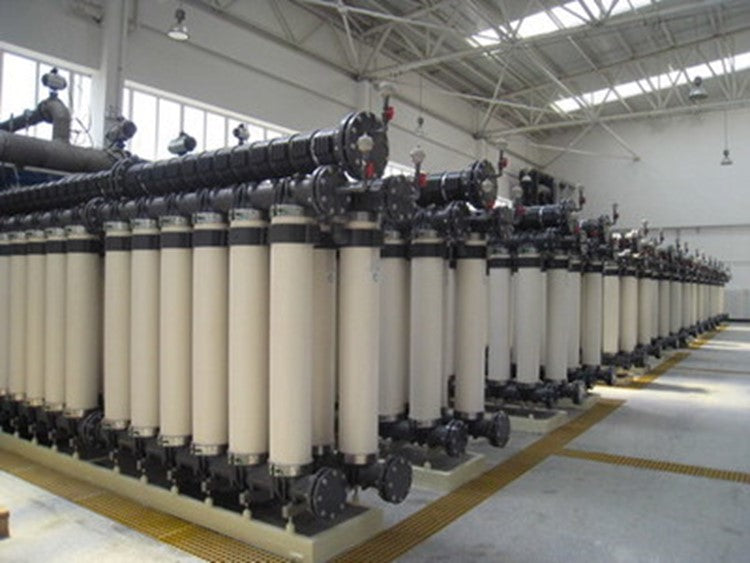

- Introduction to the Ultrafiltration System
Ultrafiltration is a membrane separation technology primarily used for the separation, concentration, and purification of macromolecular substances in solutions. The working principle of the UF system is to utilize the sieving effect of the semipermeable membrane, allowing water and small molecules to pass through the membrane pores while retaining larger molecules and particles on the surface of the membrane. By doing so, the UF system can effectively remove suspended solids, colloidal particles, bacteria, and other pollutants from wastewater, thereby achieving the purpose of purifying water quality.
Water supply capacity: 1m³/h
|
brand |
Witya |
Origin |
Hubei, China |
|
model |
WTY-UF-1 |
type |
A set of equipment |
|
Voltage |
380V/220V |
capacity |
1m³/h |
|
control method |
Fully automatic control/semi-automatic control |
energy source |
electricity |
|
Installed power |
1.0kw |
water source |
city tap water |
|
weight |
Customized |
Host size |
800×800× 1500mm（H） |
|
Certification |
CE/ISO9001 |
Material |
304/UPVC/PVDF |
|
After-sales |
Engineer guides installation, commissioning and training |
warranty period |
1 year |
|
shipping packages |
Standard export packaging |
production capacity |
500 sets per year |
Water supply capacity: 2m³/h
|
brand |
Witya |
Origin |
Hubei, China |
|
model |
WTY-UF-2 |
type |
A set of equipment |
|
Voltage |
380V/220V |
capacity |
2m³/h |
|
control method |
Fully automatic control/semi-automatic control |
energy source |
electricity |
|
Installed power |
1.3kw |
water source |
city tap water |
|
weight |
Customized |
Host size |
1000×800×1500mm (H) |
|
Certification |
CE/ISO9001 |
Material |
304/UPVC/PVDF |
|
After-sales |
Engineer guides installation, commissioning and training |
warranty period |
1 year |
|
shipping packages |
Standard export packaging |
production capacity |
500 sets per year |
Water supply capacity: 5m³/h
|
brand |
Witya |
Origin |
Hubei, China |
|
model |
WTY-UF-5 |
type |
A set of equipment |
|
Voltage |
380V/220V |
capacity |
5m³/h |
|
control method |
Fully automatic control/semi-automatic control |
energy source |
electricity |
|
Installed power |
3.7kw |
water source |
city tap water |
|
weight |
Customized |
Host size |
2000×1000×2200mm (H) |
|
Certification |
CE/ISO9001 |
Material |
304/UPVC/PVDF |
|
After-sales |
Engineer guides installation, commissioning and training |
warranty period |
1 year |
|
shipping packages |
Standard export packaging |
production capacity |
300 sets per year |
Water supply capacity: 10m³/h
|
brand |
Witya |
Origin |
Hubei, China |
|
model |
WTY-UF-10 |
type |
A set of equipment |
|
Voltage |
380V/220V |
capacity |
10m³/h |
|
control method |
Fully automatic control/semi-automatic control |
energy source |
electricity |
|
Installed power |
6.4kw |
water source |
city tap water |
|
weight |
Customized |
Host size |
2000×1800×2200mm (H) |
|
Certification |
CE/ISO9001 |
Material |
304/UPVC/PVDF |
|
After-sales |
Engineer guides installation, commissioning and training |
warranty period |
1 year |
|
shipping packages |
Standard export packaging |
production capacity |
200 sets per year |
Water supply capacity: 20m³/h
|
brand |
Witya |
Origin |
Hubei, China |
|
model |
WTY-UF-20 |
type |
A set of equipment |
|
Voltage |
380V/220V |
capacity |
20m³/h |
|
control method |
Fully automatic control/semi-automatic control |
energy source |
electricity |
|
Installed power |
18.5kw |
water source |
city tap water |
|
weight |
Customized |
Host size |
3600×2000×2600mm (H) |
|
Certification |
CE/ISO9001 |
Material |
304/UPVC/PVDF |
|
After-sales |
Engineer guides installation, commissioning and training |
warranty period |
1 year |
|
shipping packages |
Standard export packaging |
production capacity |
100 sets per year |
Other water supply capabilities can be customized
For other special and customized UF system, please contact us now
